Home >> Machinery Spare Parts >> For Pellet Mill >> SZLH(MUZL) Series >> Rotor [MUZL610(SZLH520*180)]
SKU: 50922F78C386E

Rotor [MUZL610(SZLH520*180)]

Please select the accessories in the table below, referring to the structure diagram. The price in this page is unofficial virtual price. The accurate price will be offered after you place orders.

Add to Wishlist Email to a Friend
facebook twitter
Average Customer Rating
rating
(0 Review)
add to inquiry basket
NO. ITEM ADVISE
QTY		 PRICE QTY
1 main shaft disc 1 $0.00 - +
2 inner scraper assembly 2 $0.00 - +
3 driving flange of ring die 1 $0.00 - +
4 rotor 1 $0.00 - +
5 centering pin of ring die 8 $0.00 - +
6 spacer 8 $0.00 - +
7 nut M20 8 $0.00 - +
8 screw M24*150 12 $0.00 - +
9 rear end cover 1 $0.00 - +
10 rear inner race 1 $0.00 - +
11 big belt pulley 1 $0.00 - +
12 assembly of grease block at the rear part 1 $0.00 - +
13 key 12*25 1 $0.00 - +
14 lip-shaped oil seal 180*210*15 1 $0.00 - +
15 SKF bearing 32228 1 $0.00 - +
16 lip-shaped oil seal 190*220*15 2 $0.00 - +
17 seal cover of front end 1 $0.00 - +
18 front seal plate 1 $0.00 - +
19 front inner race 1 $0.00 - +
20 o-ring gasket 6*1.8 2 $0.00 - +
21 support shaft 2 $0.00 - +
22 block for front support 1 $0.00 - +
Replacement Total:
  • Overview
  • Customer Review
  • Purchasing guide
  • Delivery

Rotor of pellet mill [MUZL610(SZLH520*180)]

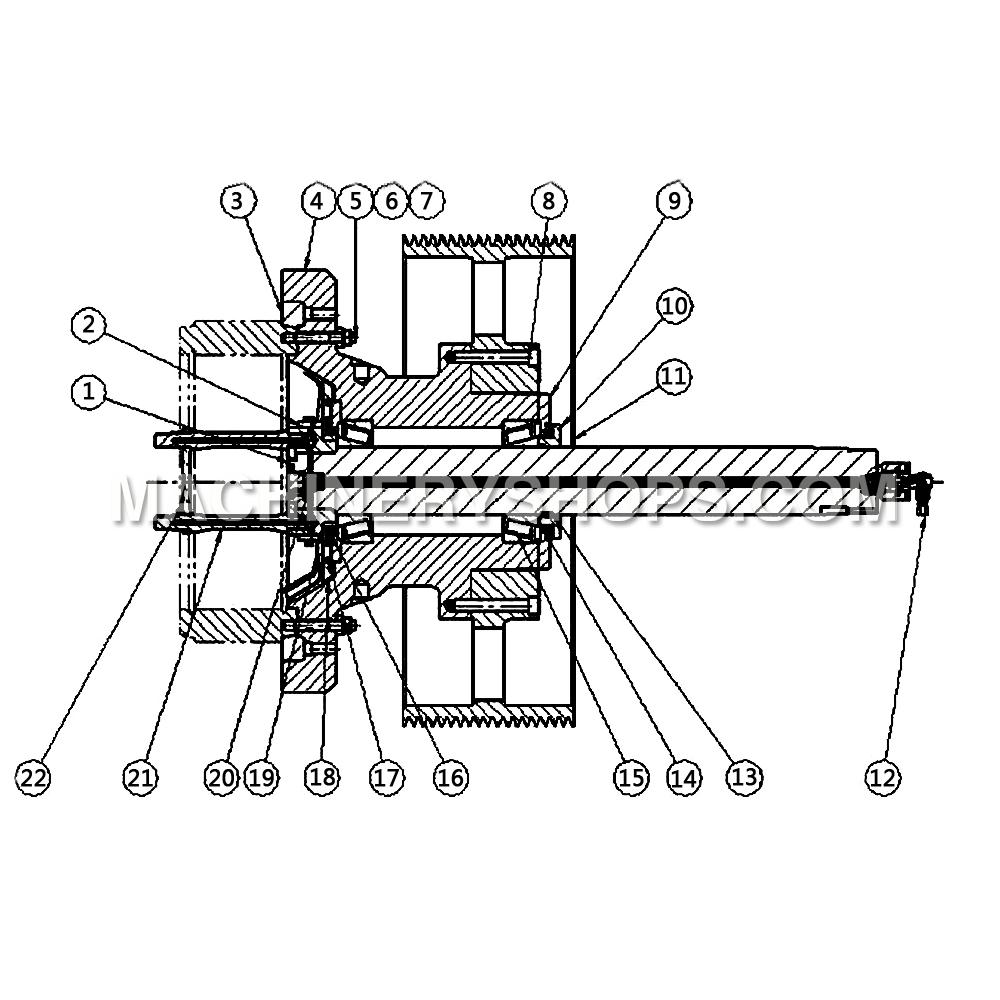

Schematic diagram of rotor structure



List of rotor structure

No.

Designation

Qty(pcs/unit)

1

main shaft disc

1

2

inner scraper assembly

2

3

driving flange of ring die

1

4

rotor

1

5

centering pin of ring die

8

6

spacer

8

7

nut M20

8

8

screw M24*150

12

9

rear end cover

1

10

rear inner race

1

11

big belt pulley

1

12

assembly of grease block at the rear part

1

13

key 12*25

1

14

lip-shaped oil seal 180*210*15

1

15

SKF bearing 32228

1

16

lip-shaped oil seal 190*220*15

2

17

seal cover of front end

1

18

front seal plate

1

19

front inner race

1

20

o-ring gasket 6*1.8

2

21

support shaft

2

22

block for front support

1
